Engine Cooling System Schematic - System description - Engine Cooling System HR16DE

Nissan Juke Service and Repair Manual : Engine Cooling System Schematic

Nissan Juke Service and Repair Manual / Engine Cooling System HR16DE / System description / Engine Cooling System Schematic

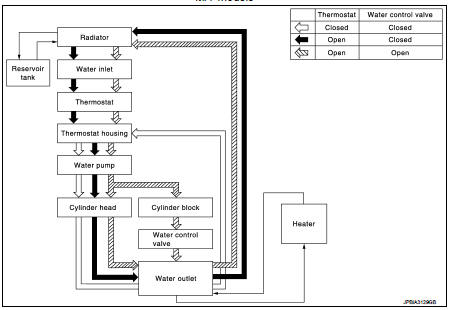

M/T models

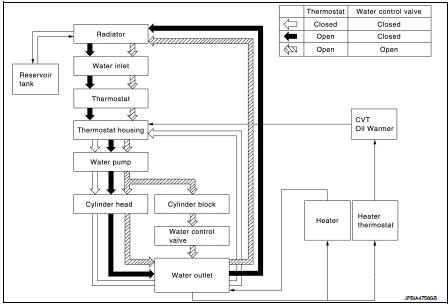

CVT models

Symptom diagnosis

OVERHEATING CAUSE ANALYSIS Troubleshooting Chart ...
