Nissan Juke Service and Repair Manual : Door mirror system (without intelligent key)

Nissan Juke Service and Repair Manual / Mirrors / Wiring diagram / Door mirror system (without intelligent key)

LHD

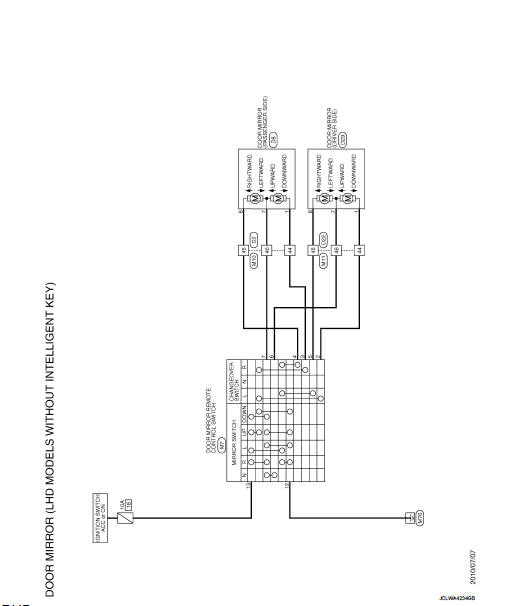

LHD : Wiring Diagram

For connector terminal arrangements, harness layouts, and alphabets in a described in wiring diagram), refer to GI-12, "Connector Information/Explanation(option abbreviation; if not
described in wiring diagram), refer to GI-12, "Connector Information/Explanation of Option Abbreviation".

RHD


RHD

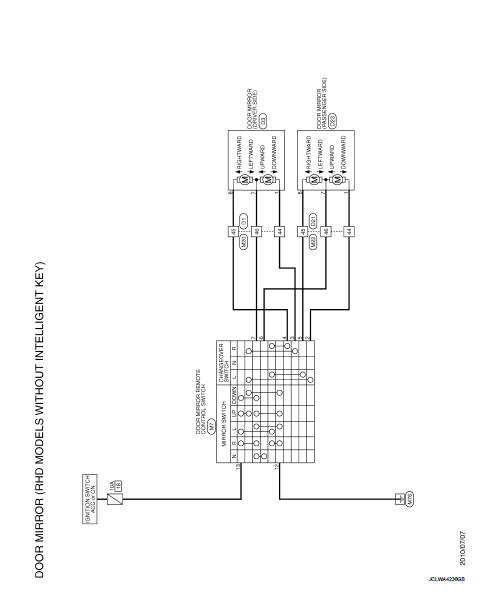

RHD : Wiring Diagram

For connector terminal arrangements, harness layouts, and alphabets in a(option abbreviation; if not
(option abbreviation; if not described in wiring diagram), refer to GI-12, "Connector Information/Explanation of Option Abbreviation".

Basic inspection


    Door mirror system (with intelligent key)
    LHD LHD : Wiring Diagram For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), refer to GI-12, "Connector Informa ...

    Basic inspection
    DIAGNOSIS AND REPAIR WORK FLOW Work Flow DETAILED FLOW 1.OBTAIN INFORMATION ABOUT SYMPTOM Interview the customer to obtain as much malfunction information (conditions and environment when the ma ...
