Nissan Juke Service and Repair Manual : B2109 steering lock relay
DTC Logic

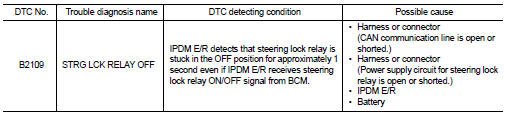

DTC DETECTION LOGIC
NOTE
:
• If DTC B2109 is displayed with DTC U1000, first perform the trouble diagnosis
for DTC U1000. Refer to
PCS-30, "DTC Logic".
• When IPDM E/R power supply voltage is low (Approx. 7 - 8 V for about 1 second), the DTC B2109 may be detected.
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Press push-button ignition switch under the following conditions and wait 1 second or more.
- Selector lever: In the P position - Brake pedal: Not depressed 2. Check DTC in “Self Diagnostic Result” mode of “IPDM E/R” using CONSULT-III.
Is DTC detected? YES >> Go to SEC-139, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis Procedure
1.CHECK POWER SUPPLY CIRCUIT
Check IPDM E/R power supply circuit. Refer to PCS-33, "Diagnosis Procedure".
Is the inspection result normal? YES >> GO TO 2.
NO >> Repair or replace the malfunctioning part.
2.CHECK FUSE
1. Turn ignition switch OFF.
2. Check 10 A fuse (No. 44, located in IPDM E/R).
Is the inspection result normal? YES >> Replace IPDM E/R. Refer to PCS-34, "Removal and Installation".
NO >> Replace the blown fuse after repairing the cause of ffected circuit if a fuse is blown.
